CNC Plasma And Oxyfuel Cutting Solutions

• Automatic
• Other, Fully Automatic Operations

• Axial Choice
• 3 Axis Standard (Optional 4th Axis)

• Bar Feeder
• Other, Not Included

• Capacity
• Suitable for plate thickness up to 20 mm (depends on source)

• Color
• Other, Red and Black

• Computerized
• Yes

• Dimension (L*W*H)
• 4200 mm x 2200 mm x 1600 mm

• Feature
• Other, High Precision, Fast Cutting Speed, Low Maintenance

• General Use
• Sheet Metal and Plate Cutting

• Material
• Other, Steel, Stainless Steel, Aluminum, Copper, Brass

• Motor
• Other, Servo Motor for X, Y, and Z axes

• PLC Control
• Yes

• Power Consumption
• Varies by model (typically 5-8 kW)

• Power Source
• Electric

• Product Type

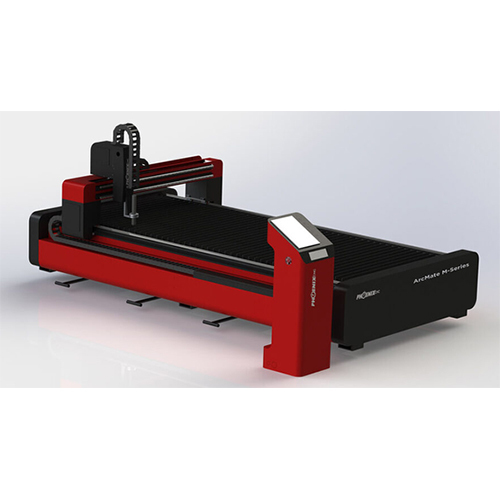

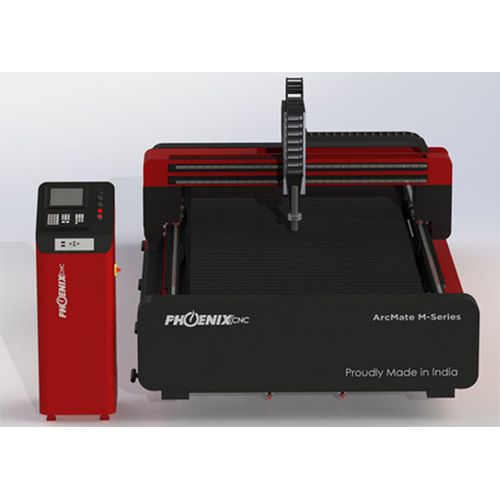

• ArcMate M Series CNC Cutting Machine

• Rigidity
• Other, High, with heavy-duty welded steel frame

• Spindle Speed
• Not Applicable (for cutting, not spindle driven)

• Table Size
• 3000 mm x 1500 mm

• Type
• Other, CNC Plasma/Laser Cutting Machine

• Voltage
• 380V / 50Hz

• Weight (kg)
• Approx. 2500 kg

• Automatic
• Yes

• Axial Choice
• Multi-axis capability

• Capacity
• Plasma: As per power source; Oxyfuel: Up to 300 mm

• Color
• Other, Red/Black

• Computerized
• Yes

• Dimension (L*W*H)
• Varies (e.g., 9 x 3.5 x 3 m or custom)

• Feature
• Other, CNC plasma and oxyfuel cutting

• General Use
• Metal plate cutting, industrial fabrication

• Material
• Other, High-strength structural steel

• Motor
• Other, PANASONIC A6 SERIES or FUJI ALPHA Smart Servo Motors (Japan)

• PLC Control
• Other, Yes (Controller: FLMC, Eckelmann, ECS)

• Power Consumption
• Depends on plasma source

• Power Source
• Other, Electric; 415V, 50Hz/60Hz

• Product Type
• ArcMate J Series CNC

• Rigidity
• Other, Heavy-duty structure

• Table Size
• Custom as per design

• Type
• Other, CNC Plasma + Oxyfuel Cutting Machine

• Voltage
• 415V, 50Hz/60Hz

• Weight (kg)
• Varies as per model

• Automatic
• Yes

• Axial Choice
• 3-Axis

• Bar Feeder
• Other, YES, pipe cutting supported

• Capacity
• Maximum material loading: 950kg/1250kg

• Color
• Other, Red/Black (as shown)

• Computerized
• Yes

• Dimension (L*W*H)
• 3.0M X 4.5M X 1.2M or 3.5M X 5.0M X 1.2M

• Feature
• Other, Automatic torch height control (Plasma: YES, Oxyfuel: NO), Plasma anti-collision: YES, Wireless remote: YES, Material collection trolley: YES, Water table: Optional

• General Use
• Plate & Pipe Cutting

• Material
• Other, Industrial steel construction

• Motor
• Other, Servo Motors & Drives, Japan

• PLC Control
• Other, YES; Controller: Chinese/German/Italian

• Power Consumption
• Depends on plasma power chosen

• Power Source
• Other, 415V, 50Hz/60Hz

• Product Type
• Table Type CNC Plasma / Oxyfuel Plate with Pipe Cutting Machine

• Rigidity
• Other, High structural rigidity

• Spindle Speed
• Varies with power source

• Table Size
• Effective cutting: Y-Axis 2550/3050 mm, X-Axis 1350/1550 mm

• Type
• Other, Plasma / Oxyfuel

• Voltage
• 415V

• Weight (kg)
• Varies by configuration

• Automatic
• Yes

• Axial Choice
• Multi-axis options

• Capacity
• Plasma and Oxyfuel (depends on selected power source/torch)

• Color
• Other, Red and Black

• Computerized
• Yes

• Dimension (L*W*H)
• Various (e.g. 9 x 3.5 x 3m, up to 46 x 6 x 3m)

• Feature
• Other, Auto Torch Height, Anti Collision, Nesting Software, Auto Ignition

• General Use
• Industrial Plate Cutting

• Material
• Other, Structural Steel, Table - Steel/Custom

• Motor
• Other, PANASONIC A6 SERIES or FUJI ALPHA SMART SERVO MOTORS (JAPAN)

• PLC Control
• Other, Available (ECS/Eckelmann)

• Power Consumption
• Depends on configuration

• Power Source
• Other, 415V, 50Hz/60Hz

• Product Type
• CNC Plasma & Oxyfuel Cutting Machine

• Rigidity
• Other, Heavy Mechanized Structure

• Table Size
• Custom; as per design

• Type
• Other, Automatic CNC Cutting

• Voltage
• 415V

• Weight (kg)
• Varies by model

• Automatic
• Yes

• Axial Choice
• 2, 3 & 5 axes

• Capacity
• Chuck Diameter: 25mm-400mm, Cutting Length: 3m-12m

• Color
• Other, Red/Black (observed)

• Computerized
• Other, Yes, CNC Operated

• Feature
• Other, Straight/Bevel Cutting Head with +/-45

• General Use
• Pipe cutting, plasma or oxyfuel

• PLC Control
• Other, Chinese/Italian/German controller

• Power Source
• Other, Thermacut/Hypertherm/Kjellberg (plasma), GCE Fit Plus or BGR (oxyfuel)

• Product Type
• CNC PLASMA/OXYFUEL PIPE CUTTING MACHINE

• Type
• Other, ArcMate Z - Series

• Automatic
• Yes

• Color
• Other, Yellow and Black

• Computerized
• Yes

• Feature
• Other, High Precision Cutting

• General Use
• Metal Cutting

• Power Source
• Other, K 200

• Product Type
• High Definition Plasma Power Source

• Type
• Other, CNC Plasma Power Source

• Color
• Other, Yellow and Black

• Feature
• Other, High Precision Cutting

• General Use
• Plasma Cutting

• Power Source
• Other, K 200

• Product Type
• High Definition Plasma Power Source

• Type
• Other, Industrial Plasma Power Source

• Automatic
• Yes

• Color
• Other, Yellow/Black

• Feature
• Other, High definition cutting

• General Use
• Industrial metal cutting

• Material
• Other, Steel and composite

• Power Source
• Other, K 200

• Product Type
• High Definition Plasma Power Source

• Type
• Other, Plasma Power Source
