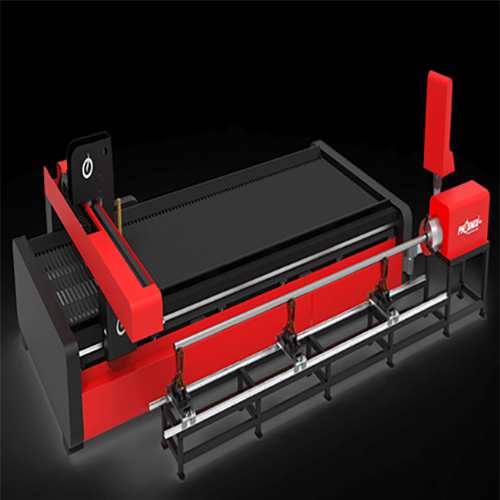

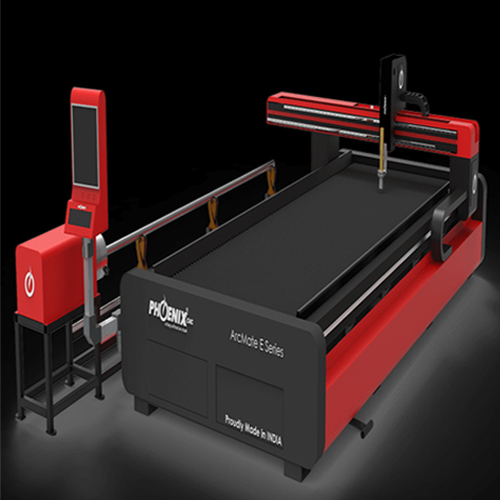

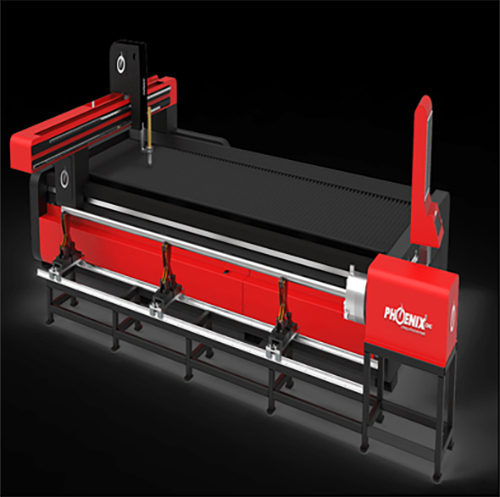

ArcMate E Series

Get a Price/Quote

MOQ : 1 Unit

ArcMate E Series Specification

Product Type
Table Type CNC Plasma / Oxyfuel Plate with Pipe Cutting Machine

General Use
Plate & Pipe Cutting

Material
Industrial steel construction

Type
Plasma / Oxyfuel

Capacity
Maximum material loading: 950kg/1250kg

Weight (kg)
Varies by configuration

Computerized
Yes

Automatic
Yes

PLC Control
YES; Controller: Chinese/German/Italian

Bar Feeder
YES, pipe cutting supported

Power Source
415V, 50Hz/60Hz

Power Consumption
Depends on plasma power chosen

Rigidity
High structural rigidity

Voltage
415V

Motor
Servo Motors & Drives, Japan

Table Size
Effective cutting: Y-Axis 2550/3050 mm, X-Axis 1350/1550 mm

Spindle Speed
Varies with power source

Axial Choice
3-Axis

Dimension (L*W*H)
3.0M X 4.5M X 1.2M or 3.5M X 5.0M X 1.2M

Feature
Automatic torch height control (Plasma: YES, Oxyfuel: NO), Plasma anti-collision: YES, Wireless remote: YES, Material collection trolley: YES, Water table: Optional

Color
Red/Black (as shown)

Repeatability
0.1 mm

Z-Axis stroke
100 mm

Auto ignition (oxyfuel)
NO

Wireless control
Included

Multi-torch options
Available

Nesting software
YES

Chuck size
250 mm

Oxyfuel capacity
Up to 50mm MS

LM Guideways
Taiwan linear motion

Controller options
Chinese/German/Italian

Max clamp
250 mm

Cutting width
1350/1550 mm

Pipe cutting torch
Supported

Cutting length
2550/3050 mm

Material trolley
Included

Positioning accuracy
0.05 mm

Plasma cutting capacity
Depends on power source

Min clamp
50 mm

Travel speed
12 m/min

Torch height control
Auto (Plasma)

ArcMate E Series Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About ArcMate E Series

Procure the ArcMate E Series-India's popular plate and pipe cutting solution revered for its glorious precision and pivotal reliability. This computerized, automatic system handles sheet and pipe material with ease, thanks to its industrial steel construction, effective cutting dimensions (up to 3050 mm), and a robust material handling trolley. Ineffable accuracy (0.05 mm) is assured through Servo Motors & Japanese Drives, Taiwan LM Guideways, and intuitive controller options. Order now for repeatable, high-speed performance, enhanced by automatic torch height control and wireless remote. Multi-torch configurations and pipe cutting support deliver unmatched versatility.

ArcMate E Series: Extra Features & Versatile Applications

The ArcMate E Series stands apart with advanced features such as wireless remote control, plasma anti-collision, and automatic torch height control for plasma cutting. Its multi-torch options and pipe cutting torch compatibility allow effortless adaptation for varied tasks. Application is seamless across a range of industrial surfaces, including plates and pipes, with setup streamlined by included nesting software and robust material trolley. The sturdy industrial steel build ensures longevity, while the water table option refines operational safety and cleanliness.

Sample Availability, Certifications & Dispatch Details

ArcMate E Series samples can be requested prior to full deployment, offering potential clients firsthand evaluation. Each unit is shipped with all requisite certifications, confirming its quality and performance. The main domestic market spans across India, with goods efficiently dispatched from the manufacturer. Freight is managed based on configuration and location, ensuring safe and timely delivery. Clients can expect detailed shipment tracking and responsive support throughout the delivery process, making procurement of the ArcMate especially convenient.

FAQ's of ArcMate E Series:

Q: How can I order the ArcMate E Series and what is the procurement process?

A: You can order the ArcMate E Series directly through the manufacturer or authorized suppliers. Simply contact their sales team, specify your configuration, and follow the provided order and payment instructions. The procurement process involves confirmation, freight arrangements, and coordinated dispatch to your address.

Q: What surfaces and materials can the ArcMate E Series effectively cut?

A: The ArcMate E Series is engineered for both plate and pipe cutting applications and is suitable for industrial steel, mild steel (MS), and various other metals, depending on the chosen plasma or oxyfuel power source. Its construction and features accommodate heavy material and diverse dimensions.

Q: When are samples of the ArcMate E Series available for evaluation?

A: Samples can be arranged prior to bulk orders upon request. Contact the manufacturer to coordinate a suitable time for shipment or on-site demonstration, depending on availability and logistical arrangements within your region.

Q: Where are ArcMate E Series goods dispatched from and how is freight managed?

A: All ArcMate E Series machines are dispatched from the manufacturer's facility in India. Freight details-including mode, cost, and estimated delivery time-are communicated during the order confirmation process and are managed to guarantee safe arrival.

Q: What are the main benefits of features like automatic torch height control and wireless remote?

A: Automatic torch height control for plasma ensures optimal cutting accuracy by dynamically adjusting torch proximity. The wireless remote grants operators flexibility and control, improving efficiency and safety during machine operation.
